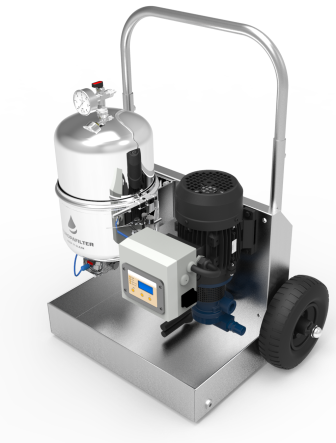

EF 2115X Mobile OIL CLEANING SYSTEM

Artikelnr: EF 2115X Mobile OIL CLEANING SYSTEM

Over dit product

Water and solid contaminants are very effectively removed out from the oil with the EF2100 oil cleaning systems.

The EF2100 Oil Cleaning Systems (OCS) are offline units which means that a small amount of oil is taken from a tank or continuously bypassed from a main ring line, cleaned in the OCS and then returned as clean oil into the oil system/machine concerned.

The OCS are individual circuits and will not affect any functions in the concerned oil system/machine. The standard cleaning systems consist of 1-6 cleaning housings which are connected in parallel.

Oil volume and viscosity decides the number of housings needed for a proper cleaning efficiency. Each system consist of motor with pump, oil sample valve before and after/bleed valve, drain valve, pressure gauge and armoured hydraulic hoses. The components are mounted on a steel plate.


Weight

28 - 38 kg

Depth

570 mm

Height

1020 mm

Min - Max flow

12 - 300 l/h

Working pressure

0,8 - 5 bar

Pressure Gauge

0 - 6 bar

Pump

Gear Pump mono bloc el. motor driven, special variants optional

Connection OUT

BSP 3/8"
